What Is the Difference between 220 and 240 Volt Outlets


abc news

Knowing the Difference between 220 and 240 Volt Outlets is crucial to the setup of your home or business appliances. The main contrast between a 220-volt outlet and a 240-volt outlet is the current they can provide. In comparison to a 120-volt circuit, a 220-volt circuit provides almost twice as much power, whereas a 240-volt circuit provides 10 percent more power than a 220-volt circuit.

After all, there is a need that you plug your devices into the appropriate outlets with matching voltage. You cannot insist on this matter. Or else, they will not function properly.

By selecting the appropriate outlets, you're not only safeguarding the performance of your appliances but also protecting them from potential fire and electrical hazards. Placing appliances in areas with the right outlets is a wise practice, whether you're dealing with a refrigerator, washing machine, or office equipment.


It is important that you can place or install your appliances in areas where the appropriate outlets are present. Whether it is your refrigerator or washing machine, the correct selection of outlet does matter.


It is a healthy and wise approach. It does not only preserve the quality of your appliances but protects them from potential fire and electrical hazards.


Since we are talking about these outlets, it is quite necessary that you know their differences.


You can never plug your gadgets and devices to the correct outlet if you do not know the latter is attributes and common issues. Check the next sections to know the details.

Basics of Electrical Plugs

Today, there are around fifteen types of plugs that are used commercially. Each of these plugs has been labeled properly so the consumers can identify them properly.

Difference between 220 and 240 Volt Outlets

However, always take into account that the plug's name does not have any unique attribute or meaning. Therefore, you should not worry about them that much.

Some plugs are compatible with either Difference between 220 and 240 Volt Outlets. Just as I said, there are labels for these plugs in the manufacturer or appliance manual.

You have to ascertain the appropriate voltages the plugs are compatible; otherwise, things would end up the way you do not expect them to be.

When the plug and the outlet are not suited for each other, the appliance itself will suffer from irregularities. System problems could happen from time to time.

Furthermore, the conductor of the appliance would eventually heat-up unprecedentedly. As a result, fire hazards can be imminent.

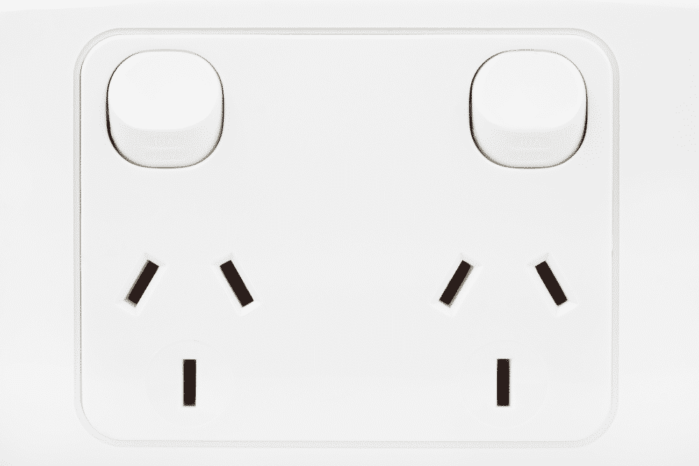

Difference between 220 and 240 Outlets

PHOTO LINK:

Difference between 220 and 240 Volt Outlets

The manufacturer of the appliance or gadget is the one that decides the type of plugs that they are going to use. There are instances in where they create a plug that has a unique voltage for every appliance.

I have listed every plug here and classified them based on their compatibility with 220-volt and 240-volt outlets. Check the list below:

220-volt Appliances Plug Capacity:

C, D, E, F, G, H, I, J, K, L, M, N, 0

Take note that some of the plugs that were listed are utilized in the different parts of the world. However, it is notable that some plugs are exclusive by country or region. If we are talking about plug voltages per country, here are the classifications: A, B, C, D, E, F, G, K, L, M, N., and I

240-volt Appliances Plug Capacity:

C, D, E, F, G, H, I, J, K, L, M, N, 0

Noticeably, the plugs are similar to the ones that we can see on Difference between 220 and 240 Volt Outlets appliances. Moreover, some of the plugs are made exclusive to only a few countries. If you are going to dissect it, you will realize that there are only three types of 240-volt plugs that are country-based. They are the D, G, and I.

Many 220-volt outlets do not have experience any problem whenever the appropriate plugs are entered. However, some of the 220-volt outlets can work with two or more plug types.

For instance, Type B plugs are compatible with type A plugs. Another good example is the type D plug, which is slightly compatible with C, F, and E plugs. However, I do not recommend that you try this one because it poses potential risks.

Meanwhile, 240-volt outlets have the same compatibility as the 220-volt outlets. However, to avoid hazards, I do recommend that you should attach the plug of the appliance to the correct outlets only.

It would be great if you can check the appearance of the outlet or see the labels before you will start plugging your items. Take note. This approach is applicable to any appliances.


3-Wire 240 Volt Cable

Almost all modern appliances that we use require a 120 volt cable and electric circuit. To connect this equipment, you need to use three wires. The hot wire, also known as the blue or black wire, carries the electric current to the device. The white wire is usually neutral and completes the circuit, and it is connected to the neutral bus in the electric panel. The green wire or naked copper wire is the earth wire and is used for electrical safety.

In some cases, 240 volt cable may not require a neutral wire and instead include an extra hot wire. The circuit is then completed by the two hot cables. To ensure safety, the wire must be connected to a two-pole breaker at the electric circuit panel. This two single-pole breakers that have been wired together is called a two-pole breaker. This type of wiring is commonly used in electric heaters, boilers, or condensing units as a power source. Appliances that fall into this category do not require a 120 volt circuit.


4-Wire 240 Volt Cable

The second type of 240 volt circuit is commonly used for appliances like electric stoves and dryers. Although these devices use 240 volts for their main function, they can also use 120 volts to control equipment like clocks and timers.

This type of circuit is similar to a 3-wire 240 volt cable, except that a white or neutral wire is included with other wires to complete the circuit for equipment or devices that use a 120 volt circuit. A bare copper or green wire is also included as the earth wire, just like in other types of wire. To install a 4-wire 240 volt cable, like a 3-wire 240 volt cable, you will need to fit a two-pole breaker in the circuit panel.

The National Electrical Code (NEC) has recently updated its regulations regarding electric wiring used in residential home construction. As per the new guidelines, the use of a particular type of electric wiring is now mandatory. Consequently, most of the modern-day dryers and oven ranges come equipped with a 4-prong plug to comply with the updated NEC standards.


How to wire 220 - 240 Volt YouTube Video


Conclusion

As you can see, the difference between 220 and 240 outlets are not that big. In fact, most of them share the same compatibilities.

However, this does not mean that you can just plug your appliances into an outlet that you see. It is still necessary to exercise caution to be on the safe side of things.

I also suggest that you only get Difference between 220 and 240 Volt Outlets that are compatible with the existing outlets in your home. In this play, you can just plug and play your appliances without minding compatibility issues.

Did you learn from this guide? Feel free to drop your comments, suggestions, and questions in the box below.
